P610F1 Sewage Treatment Chain
P610F1 Sewage Treatment Chain: model-specific dimensions and engineering guidance for industrial wastewater-chain replacement or project RFQs. Confirm attachments, sprockets, operating duty and quantity with the enquiry.
Industrial RFQDimensional dataAttachment & sprocket reviewWhere P610F1 Sewage Treatment Chain fits in the mechanism
P610F1 Sewage Treatment Chain is a 610 mm pitch sewage-treatment chain for large-pitch sewage-treatment collector mechanisms that match the P610F1 roller, pin and attachment geometry. The useful starting point is the installed machine: identify the working and return runs, drive and take-up positions, attachments or flights, guide clearances and the sprockets that will remain in service. That system view prevents a chain with a familiar model name from being selected without checking the interfaces that actually control fit.
For replacement work, prioritize 610 mm pitch, 95.25 mm roller dimension, pin diameters, 304.8 mm hole distance and flight interface. P610F1 is a large-pitch chain with listed ultimate tensile strength of 230 kN and weight of 16.77 kg/m. P610F2 has the same nominal pitch but substantially different dimensions and tensile data, so the F1/F2 designation must be treated as an engineering difference, not a cosmetic suffix. If the plant has been repaired over time, compare the removed sample with the current sprocket, guide and flight arrangement rather than assuming an older drawing still represents every field detail.
Technical data for P610F1 Sewage Treatment Chain

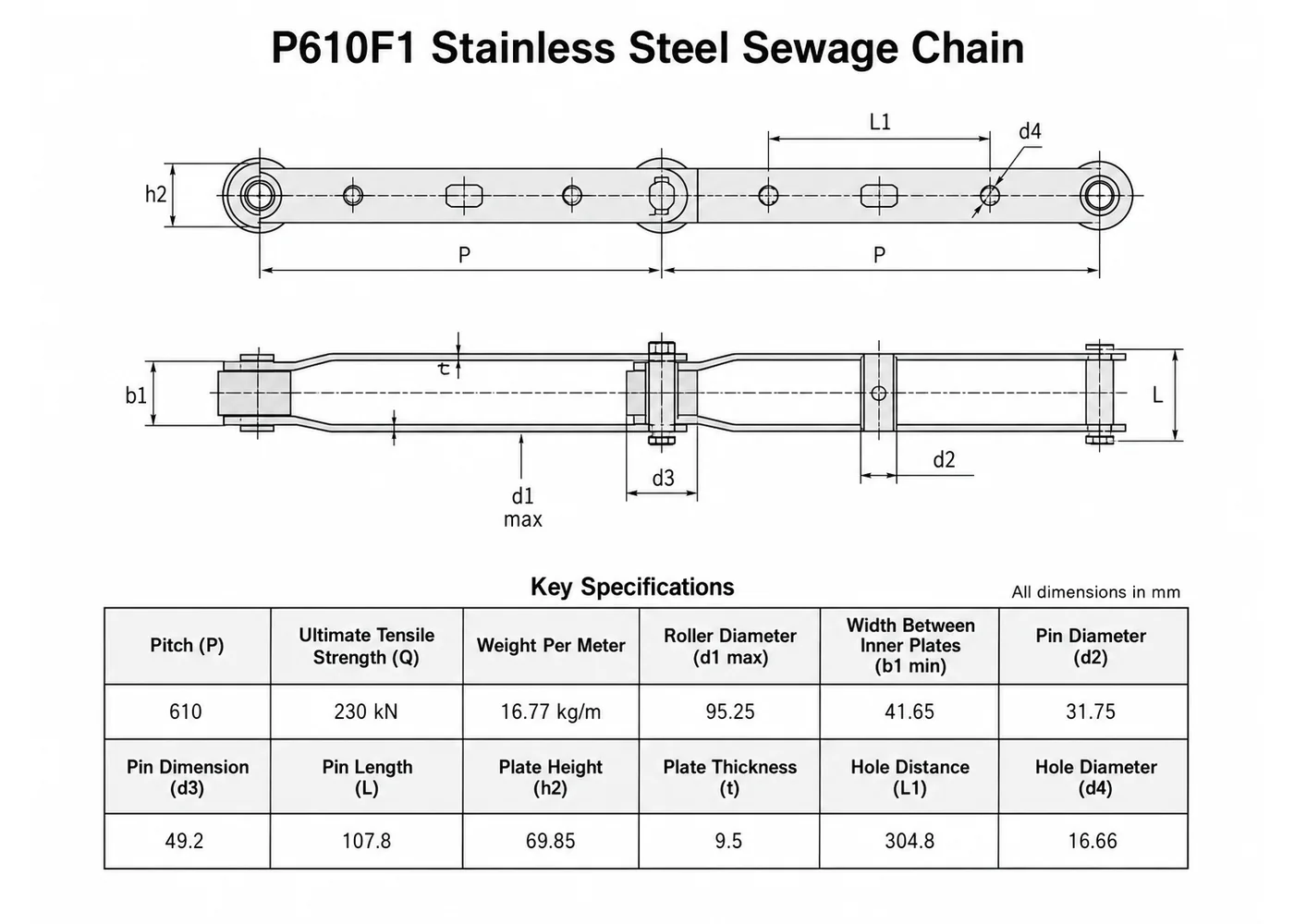

The table below reproduces the model-specific dimensions and ratings used for identification and quotation. Values are kept in the units shown for this chain. Where a dimension is identified only by a drawing symbol, the symbol is preserved and the adjacent dimension drawing defines its measurement points.
| Parameter / symbol | Value |
|---|---|
| Pitch (P) | 610 mm |
| Ultimate tensile strength (Q) | 230 kN |
| Weight per meter | 16.77 kg/m |
| Roller diameter (d1 max) | 95.25 mm |
| Width between inner plates (b1 min) | 41.65 mm |
| Pin diameter (d2) | 31.75 mm |
| Pin dimension (d3) | 49.2 mm |
| Pin length (L) | 107.8 mm |
| Plate height (h2) | 69.85 mm |
| Plate thickness (t) | 9.5 mm |
| Hole distance (L1) | 304.8 mm |
| Hole diameter (d4) | 16.66 mm |
For replacement work, compare these values with the installed chain, attachments, sprockets and guides. A matching pitch alone is not sufficient evidence of interchangeability.
Dimensions that control replacement fit
Pitch is the first filter for P610F1 Sewage Treatment Chain, but it is not the acceptance test. Working width, pin or barrel diameter, overall pin length, link/plate depth and attachment geometry determine whether the chain can articulate through the guide system and seat correctly on the sprocket.
If P610F1 Sewage Treatment Chain has visible elongation, do not back-calculate every nominal dimension from the most worn area. Measure a long multi-pitch span, compare less-worn locations, and use sprocket and attachment interfaces as independent checks. On paired collector strands, record both sides so uneven wear is not mistaken for a manufacturing difference.
When checking P610F1 Sewage Treatment Chain, mark every field measurement on a sketch with clear reference points. A dimension without reference points is ambiguous if one person measures over pin heads and another between link faces. The replacement record should be repeatable by a second inspector.
Evaluate the chain inside the wastewater process
The operating environment for P610F1 Sewage Treatment Chain should be described in machine terms: process type, submerged or exposed sections, solids and grit, cleaning chemistry, temperature, start-stop frequency and any known blockage or shock events. These observations help identify whether the main risk is corrosion, abrasive wear, articulation resistance, attachment loading or a mechanical alignment problem.
For P610F1 Sewage Treatment Chain in collector or chain-and-flight equipment, trace how the process element transfers load into the chain. Record flight or rake spacing, fastener positions, offsets and paired-strand spacing. On debris-handling equipment, note pickup and discharge zones because local load peaks can govern attachment demand.
Application scenes illustrate typical equipment arrangements; final suitability must be checked against the actual machine dimensions and duty. The application engineering pages provide process-specific checklists for clarifiers, sludge collectors, grit collectors and bar screens.
Check attachments, sprockets and guides as one system
Record attachment type, repeat interval, hole centers, offset, fastener arrangement and the direction of the working load. A base chain match does not confirm the attachment.
Count teeth and record face width, shaft/bore arrangement, alignment and tooth wear. A new chain can seat poorly on a sprocket worn to an elongated old chain.
Check pin-head and plate clearance, return supports, take-up travel and the initial setting. Polished guide surfaces can reveal a width or alignment problem.
For an uncertain P610F1 Sewage Treatment Chain installation, photograph one complete attachment station, the chain seated on both drive and take-up sprockets, and any area with localized rubbing or debris accumulation. Include a ruler or known reference dimension when scale matters.
Turn field information into a controlled RFQ
For P610F1 Sewage Treatment Chain, separate the RFQ into dimensions that must remain fixed, choices that may change, and items still requiring confirmation. That keeps quotations comparable and prevents a material or attachment change from being hidden inside an otherwise similar model description.
For P610F1 Sewage Treatment Chain, include the model name if known, a dimensioned sketch or drawing, total chain length or number of pitches, strand count, joining method, attachment details, sprocket data, application and quantity. If special inspection documents or material/process requirements are needed, state them before quotation so they can be included in the manufacturing scope.
If field measurements for P610F1 Sewage Treatment Chain disagree with an archived drawing or removed sample, identify which installed components will remain. The production drawing should carry one agreed dimension set and revision so engineering, purchasing, production and incoming inspection use the same reference.
Create a baseline that can be repeated at the next shutdown
Before installing P610F1 Sewage Treatment Chain, verify sprocket alignment, chain direction, free articulation, attachment timing and guide clearance. On paired strands, compare chain length and attachment stations before flights are installed so the mechanism is not forced square by fasteners.
After P610F1 Sewage Treatment Chain is initially adjusted, record take-up position and a repeatable multi-pitch measurement when practical. Add photographs of a typical attachment and representative sprocket teeth so later wear inspections can be compared with a documented starting condition.
During P610F1 Sewage Treatment Chain service, look for uneven take-up movement, polished pin heads, one-sided guide contact, hooked tooth profiles, seized articulation and loose attachment hardware. A localized pattern often points to alignment, guide or debris problems rather than material alone.
Inspect the dimensions that control field fit
For P610F1 Sewage Treatment Chain, incoming inspection should focus on the interfaces that matter to the machine rather than measuring every available dimension with equal priority. Typical checks include pitch over multiple links, working width, pin or bearing geometry, overall width, attachment location and representative assembled length.
If the P610F1 Sewage Treatment Chain order includes special attachments, drilling, materials or processes, freeze those requirements on the approved drawing before production. The same revision should identify any inspection or material documentation required with the shipment.
Keep the approved P610F1 Sewage Treatment Chain drawing and installation notes after commissioning. For repeat orders, that record provides a controlled starting point and reduces the risk of reconstructing the specification from a heavily worn sample.
Questions buyers and maintenance teams ask about P610F1 Sewage Treatment Chain
Can P610F1 Sewage Treatment Chain be ordered from the model name alone?
For a controlled repeat order of P610F1 Sewage Treatment Chain, the model can start the enquiry. On older or modified equipment, confirm 610 mm pitch, 95.25 mm roller dimension, pin diameters, 304.8 mm hole distance and flight interface before treating it as a direct replacement.
Which measurements should be sent first?
For P610F1 Sewage Treatment Chain, send pitch over several links, working width, pin or bearing/roller dimensions, overall pin length and attachment geometry; also include sprocket tooth count and face width, plus strand spacing where paired chains are used.
Should old sprockets be reused?
Inspect the sprockets that will mate with P610F1 Sewage Treatment Chain before deciding. Hooked or asymmetrical tooth wear, poor alignment or a tooth form worn to an elongated chain can prevent correct seating of the new chain.
Can attachments be changed for a new project?
Attachments for P610F1 Sewage Treatment Chain can be reviewed when the load path and machine clearances are known. Provide the attachment drawing, interval, flight or rake connection, fasteners and travel direction.
What operating information is useful?
For P610F1 Sewage Treatment Chain, state the equipment type, submerged/exposed sections, solids or grit, cleaning chemistry, temperature, speed or cycle information, known jams and maintenance access.
What quantity information should be included?
List the required P610F1 Sewage Treatment Chain length or pitches, number of strands, joining pieces, spare requirement and line-item quantity. Mixed models can share one project enquiry when each line is separated by drawing or model.
Send the drawing or sample dimensions, attachment and sprocket data, application and quantity. The P610F1 Sewage Treatment Chain quotation can then be tied to the actual equipment interface.
